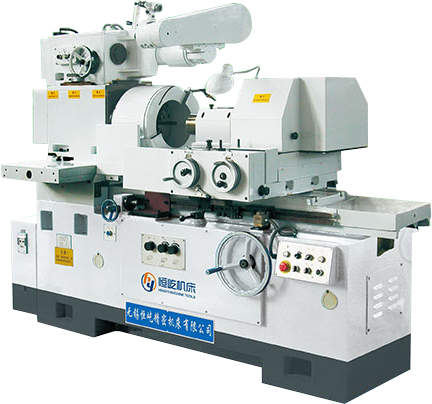

机床的主要特点 Main Characteristics
• 机床的进给及修整，由二个互不干涉的传动机构执行，进给可采用手动或液动二种进给方式。
• 机床设有跳进、跳出机构，因此退出砂轮进行测量或修整后不必重新手动对刀。
• 工作台启动有液压开关阀，确保装卸和测量工件时的安全性。
• 机床在特殊订货，可配高速砂轮轴为18000转/分，以适宜20-50mm孔的磨削。
• MD2120A在床头箱顶部设有端磨装置，并且端磨回转与工作台纵向运动有可靠的液压连锁。
• The feed and dressing movement are controlled by two independent systems. Manual and hydraulic feed movement can be used.
• The machine is equipped with a jumping device, therefore,it is unnecessary to reset the machine after measuring or dressing.
• The table is equipped with a hydraulic switch valve to ensure safely during loading and unloading and unloading workpieces.
• The machine is provided with a grinding spindle of 18000rmin which is capable of grinding bore diameter ranging bore diameter ranging from 20 to 50mm
• An endface grinding device is provided on the top of the workhead.The is a hydraulic interlock system between the swivel of the endface grinding device and the longitudinal movement of the worktable.
主要技术参数 Main Technical Specifcations
|
机床型号 |
M2120A |
MD2120A |
|
磨削孔径
Bore dia ground
(mm) |
ф20~ф200 |
ф20~ф200 |
磨孔长度
Grinding depth |
ф50(mm) |
70 |
70 |
| ф200(mm) |
200 |
200 |
工件旋径
Max.swing diameter |
罩内Within guard (mm) |
ф400 |
ф400 |
|
罩外Without guard (mm) |
ф600 |
ф600 |
|
床头箱回转角度
Swivel angle of workhead
(°) |
30° |
30° |
|
工作转速
Work speed
(r/min) |
100~500，无级(stepless) |
100~500，无级(stepless) |
|
砂轮转速
Wheel speed
(r/min) |
4000,5000,6000, 8000, 11000 |
4000,5000,6000, 8000, 11000 |
|
端磨转速
Face wheel speed
(r/min) |
|
4650 |
|
工作台行程
Max. travel of worktable
(mm) |
600 |
600 |
|
工作台运动速度
Worktable moving speed
(m/min) |
0.1~6 |
0.1~6 |
|
工作台修整速度
Worktable dressingng speed
(m/min) |
0.1~2 |
0.1~2 |
|
进给分辨率
Feed resolution
(mm) |
0.002 |
0.002 |
|
机床总功率
Machine total power
(kw) |
≈9 |
≈9 |
|
机床外形尺寸
Overall dimension
(mm) |
2100×2120×1700 |
2100×2120×1950 |
|
机床重量 Weight of machine
(kg) |
3600 |
3800 |
机床工作精度Grinding Accuracies
|
机床型号 |
M2120A |
MD2120A |
|
圆度 |
Bore roundness |
(mm) |
0.003 |
0.003 |
|
圆柱度 |
Cylindricity of bore |
(mm) |
0.005 |
0.005 |
|
内孔粗糙度 |
Surface roughness of bore |
(μm) |
Ra0.4 |
Ra0.4 |
|
端面粗糙度 |
Surface roughness of endface |
(μm) |
|
Ra0.8 |
|
