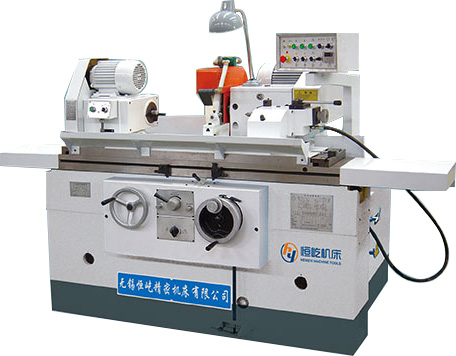

机床的主要特点 Main Characteristics
• 机床机构灵巧、精度稳定、磨削效率高。工件、砂轮。油泵和冷却泵分别以单独电机带动。
• 配置了液压驱动和电气控制操作方便。具有精巧简廉特点，适宜于成批及大量生产车间，磨削圆柱形或圆锥形外圆工件。
• 本机床是在M1320的基础上对其主要液压部件有压筒，快速进退油缸、操纵箱、压力阀板、油泵等作了重新设计。
• 工作台面回转角度从顺时针3°，逆时针6°增大为顺时针 5°，逆时针9°。机床的外形方面也做了较大的改进。
• M1420是在M1320机床基础上增加内圆砂轮轴改型而来，可以磨削一般轴、套类零件的内孔。
• With flexible structure, stable accuracy & high grindind effciency.Workpiece, wheel, oil-pump,and coolant pump are respectively driven by their individual motors.
• It has hydraulic drive, electric control for convenient operation. It is suitable for batch and mass production for grinding cylindrical or conical workpieces.
• It is designed on the base of M1320, especially inmroved for its hydraulic cylindeers, rapid advance & withdrawal cylinder control box, presure-valve board and oil pump.
• The swing angle of worktable is increased from C.W.3° and C.C.W. 6° to C.W.5° and C.C.W.9°. The overall appearance of the machine is also improved.
• In model M1420. grinding wheel spindle can be specially used to grind inner bore of shaft and ring type workparts.
主要技术参数 Main Technical Specifcations
| 机床型号 |
M1320 |
| 磨削直径范围 Diameter to be ground (mm) |
ф8~ф200 |
| 磨削长度 Max. length to be ground (mm) |
520/750/1000 |
| 工件重量 Max.swivelling workpiece weight (kg) |
50 |
| 工作台回转角度 Max. angle of swivel (°) |
5°~+9° / -3°~+9° / -3°~7° |
| 工作台液压移动速度 Hydeaulic moving speed of table (m/min) |
0.1~4 |
| 头架主轴转速 Headstock speed (r/min) |
60, 85, 120,170,230,460 |
| 头尾架锥度 Taper of headstock & tailstock tapered hole |
No.3 |
| 头架卡盘直径 Dia. of haedstock chuck (mm) |
ф125 |
| 尾架套筒移动量 Stroke of tailstock sleeve (mm) |
25 |
| 砂轮架移动量 Traverse of wheelhead spindle (mm) |
150 |
| 砂轮轴转速 Speed of gri wheel spindle (r/min) |
2230 / 1820 |
| 砂轮规格 Spec of grinding wheel (mm) |
ф400×(40~50)×ф203
or ф300×(25~40)×ф127 |
| 机床总功率 Machine total power (kw) |
4.24 |
| 机床外形尺寸 Overall dimension (mm) |
2000 × 1420 × 1600/
2700 × 1420 × 1600/
3100 × 1420 × 1600 |
| 机床重量 Weight of machine (kg) |
2500/2900/3000 |
机床工作精度 Grinding Accuracies
| 机床型号 |
M1320 |
M1420 |
| 圆度 roundness (mm) |
0.0015 |
0.0015 |
| 圆柱度 Cylindricity (mm) |
0.005 |
0.005 |
| 粗糙度 Roughness (μm) |
Ra0.4 |
Ra0.4 |
| 内孔圆度 Bore roundness (mm) |
- |
0.003 |
| 内孔圆柱度 Cylindricity of bore (mm) |
- |
0.004 |
| 内孔粗糙度 Roughness of bore (μm) |
- |
Ra0.63 |
|
